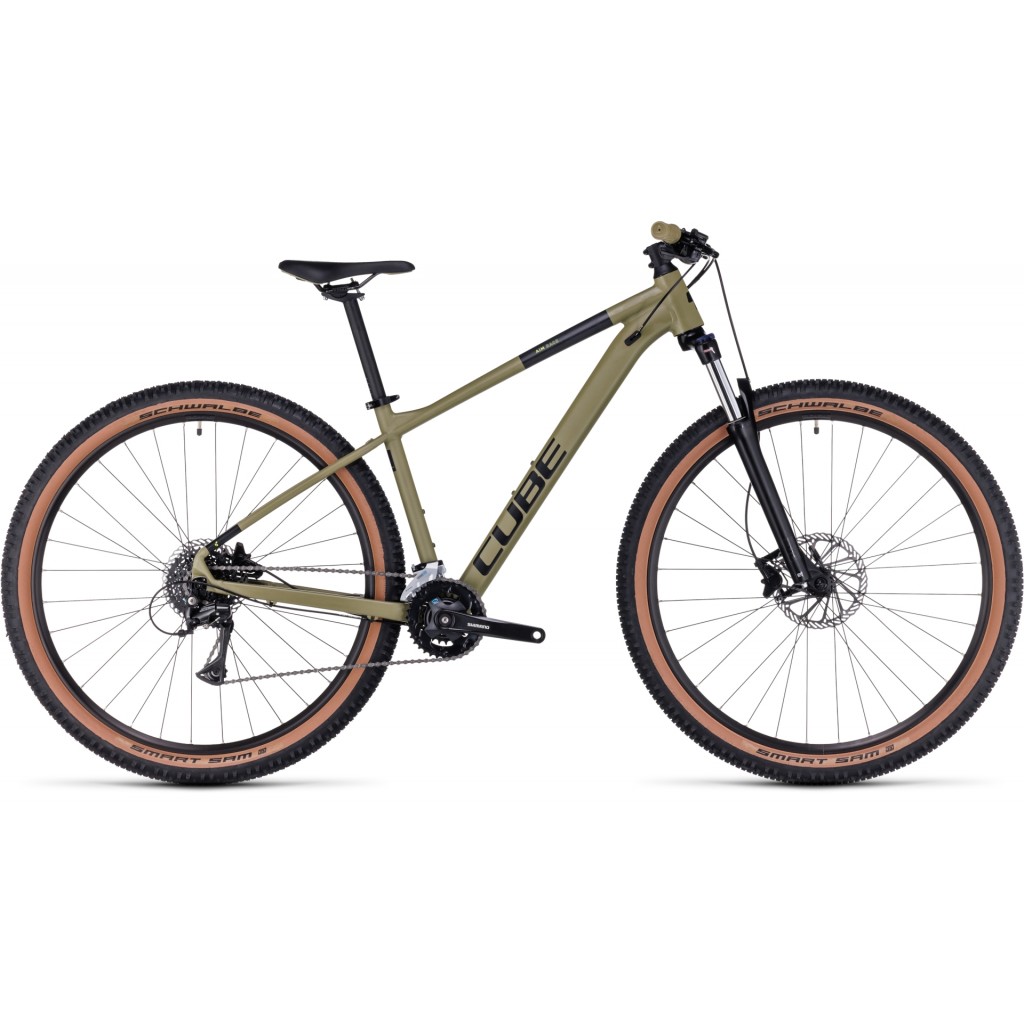

Cube Aim Race Olive 'n' Black - 2023

699,00€

Περιγραφή

FRAME

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount

SIZE

Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")

SUSPENSION

SUSPENSION FORK

SR Suntour XCT Disc, 100mm, Lockout

DRIVETRAIN & BRAKES

BRAKE SYSTEM

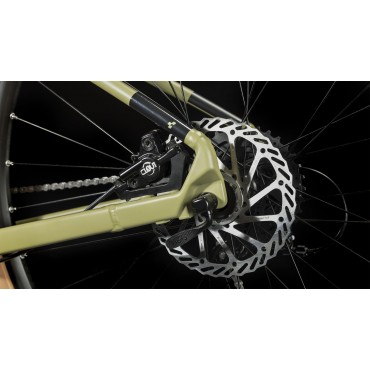

Clarks Clout 1, Hydr. Disc Brake PM/FM (180/160)

REAR DERAILLEUR

Shimano RD-M3020, 8-Speed

FRONT DERAILLEUR

Shimano FD-M315, Top Swing, 31.8mm Clamp

SHIFTERS

Shimano SL-M315, Rapidfire-Plus

BOTTOM BRACKET

Thun Paso-ML, 73mm BSA

CRANKSET

Shimano FC-M315, 36x22T, 170mm

CASSETTE

Shimano CS-HG31, 11-34T

CHAIN

KMC Z8.3

COCKPIT

HANDLEBAR

CUBE Rise Trail Bar, 680mm

STEM

CUBE Peformance Stem Race, 31.8mm

GRIPS

ACID React

HEADSET

CUBE FPH868, Semi-Integrated

WHEELS

FRONT HUB

Shimano HB-TX505, QR, Centerlock

REAR HUB

Shimano FH-TX505, QR, Centerlock

RIMS

CUBE ZX20, 32H, Disc

TYRES

Schwalbe Smart Sam, Active, 2.25

FINISHING KIT

SEAT POST

CUBE Performance Post, 27.2mm

SADDLE

Natural Fit Venec Lite

PEDALS

ACID PP MTB

PRODUCT INFORMATION

WEIGHT

14,3 kg

COLOUR

Olive 'n' Black

Structural Weight 140 kg

Bike Weight and Rider Weight 115 kg

Χαρακτηριστικά

Χαρακτηριστικά Ποδηλάτου
HeadSet	CUBE FPH868, Semi-Integrated
Ελαστικά	Schwalbe Smart Sam, Active, 2.25
Μέγεθος πλαισίου	Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22")
Ντίζα Σέλας	CUBE Performance Post, 27.2mm
Πλαίσιο	Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Σέλα	Natural Fit Venec Lite
Τιμόνι	CUBE Rise Trail Bar, 680mm
Τροχοί Εμπρόσθιος / Οπίσθιος	FRONT HUB Shimano HB-TX505, QR, Centerlock REAR HUB Shimano FH-TX505, QR, Centerlock RIMS CUBE ZX20, 32H, Disc
Χρώμα Ποδηλάτου	1. Black 'n' Azure- 2. Olive 'n' Black
Μέγεθος τροχού	29'' / 27.5''
Εμπρόσθια Ανάρτηση	SR Suntour XCT Disc, 100mm, Lockout
Οπίσθιο Σασμάν	Shimano RD-M3020, 8-Speed
Εμπρόσθιο Σασμάν	Shimano FD-M315, Top Swing, 31.8mm Clamp
Λεβιέδες Ταχυτήτων	Shimano SL-M315, Rapidfire-Plus
Σύστημα Φρένων	Clarks Clout 1, Hydr. Disc Brake PM/FM (180/160)
Δισκοβραχίονας	Shimano FC-M315, 36x22T, 170mm
Ελεύθερο - Κασέτα	Shimano CS-HG31, 11-34T
Αλυσίδα	KMC Z8.3
Αριθμός ταχυτήτων	2x8
Βάρος Ποδηλάτου	14,3
