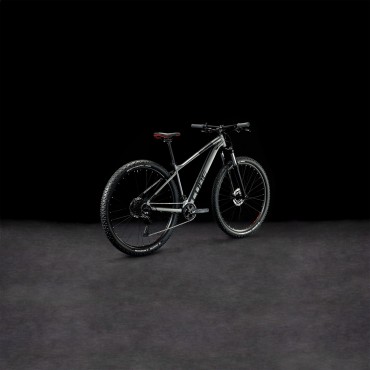

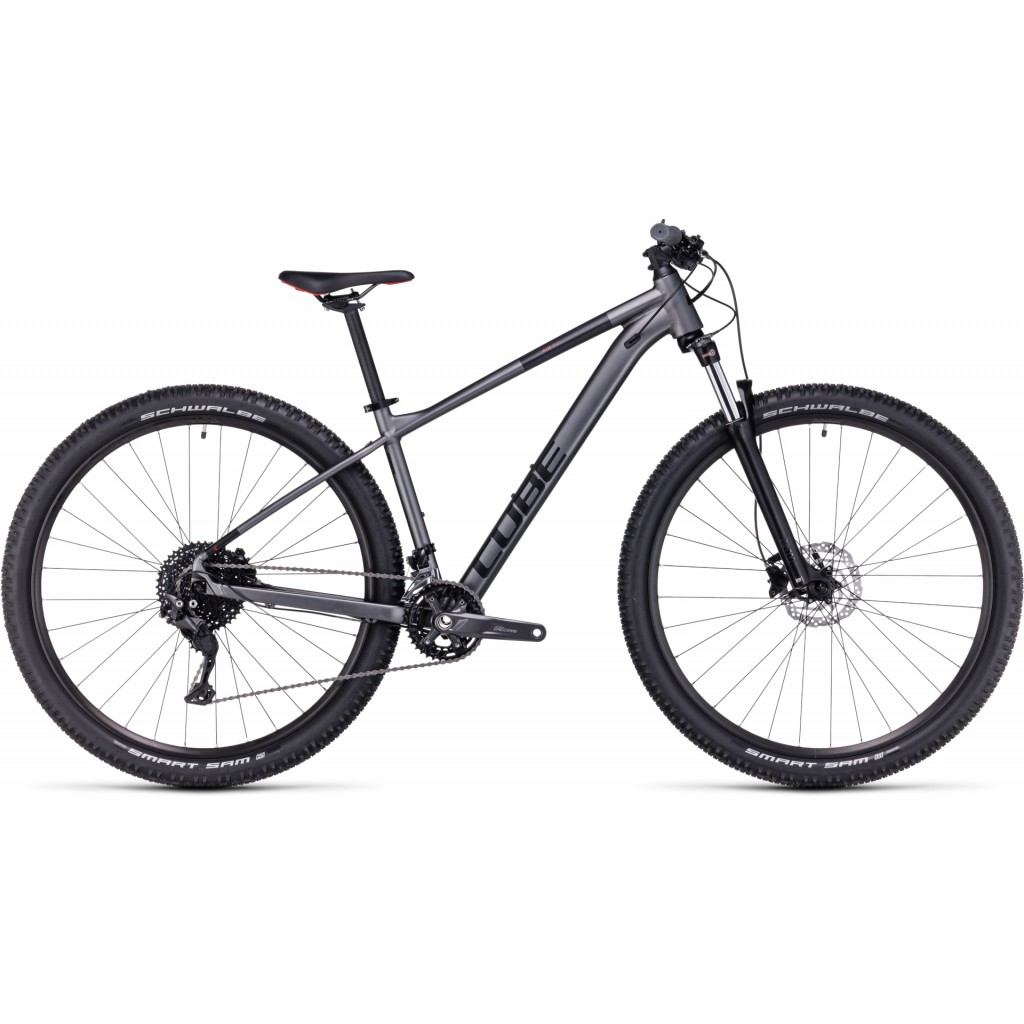

Cube Aim EX Grey 'n' Red - 2023

779,00€

Περιγραφή

FRAME

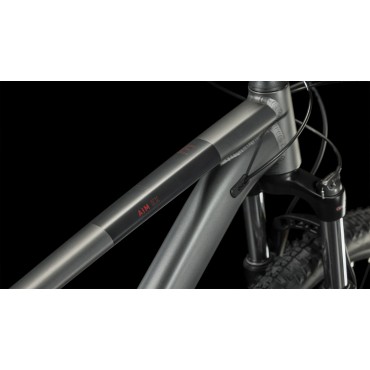

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount

SIZE

Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")

SUSPENSION

SUSPENSION FORK

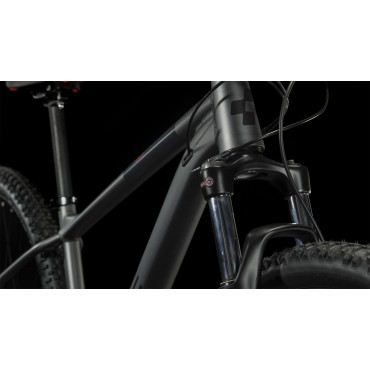

SR Suntour XCM Disc, 100mm, Remote Lockout

DRIVETRAIN & BRAKES

BRAKE SYSTEM

Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)

REAR DERAILLEUR

Shimano Deore RD-M5120-SGS, 10-Speed

FRONT DERAILLEUR

Shimano Deore FD-M6025-H, Downswing, 31.8mm Clamp

SHIFTERS

Shimano Deore SL-M5100, Rapidfire-Plus

BOTTOM BRACKET

Samox BB-EB2401, 73mm BSA

CRANKSET

Shimano Deore FC-M4100, 36X26T

CASSETTE

Sunrace CSM52, 11-42T

CHAIN

KMC X10

COCKPIT

HANDLEBAR

CUBE Rise Trail Bar, 680mm

STEM

CUBE Performance Stem Race, 31.8mm

GRIPS

ACID React

HEADSET

CUBE FPH868, Semi-Integrated

WHEELS

FRONT HUB

Shimano HB-TX505, QR, Centerlock

REAR HUB

Shimano FH-TX505, QR, Centerlock

RIMS

CUBE ZX20, 32H, Disc

TYRES

Schwalbe Smart Sam, Active, 2.25

FINISHING KIT

SEAT POST

CUBE Performance Post, 27.2mm

SADDLE

Natural Fit Venec Lite

PEDALS

ACID PP MTB

PRODUCT INFORMATION

WEIGHT

14,3 kg

COLOUR

Grey 'n' Red

Structural Weight 140 kg

Bike Weight and Rider Weight 115 kg

Χαρακτηριστικά

Χαρακτηριστικά Ποδηλάτου
HeadSet	CUBE FPH868, Semi-Integrated
Ελαστικά	Schwalbe Smart Sam, Active, 2.25
Μέγεθος πλαισίου	Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22")
Ντίζα Σέλας	CUBE Performance Post, 27.2mm
Πλαίσιο	Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Σέλα	Natural Fit Venec Lite
Τιμόνι	CUBE Rise Trail Bar, 680mm
Τροχοί Εμπρόσθιος / Οπίσθιος	FRONT HUB Shimano HB-TX505, QR, Centerlock REAR HUB Shimano FH-TX505, QR, Centerlock RIMS CUBE ZX20, 32H, Disc
Χρώμα Ποδηλάτου	1. caramel´n´black- 2. grey´n´red
Μέγεθος τροχού	27,5'' / 29''
Εμπρόσθια Ανάρτηση	SR Suntour XCM Disc, 100mm, Remote Lockout
Οπίσθιο Σασμάν	Shimano Deore RD-M5120-SGS, 10-Speed
Εμπρόσθιο Σασμάν	Shimano Deore FD-M6025-H, Downswing, 31.8mm Clamp
Λεβιέδες Ταχυτήτων	Shimano Deore SL-M5100, Rapidfire-Plus
Σύστημα Φρένων	Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
Δισκοβραχίονας	Shimano Deore FC-M4100, 36X26T
Ελεύθερο - Κασέτα	Sunrace CSM52, 11-42T
Αλυσίδα	KMC X10
Αριθμός ταχυτήτων	2x10
Βάρος Ποδηλάτου	14,3
